The ND35 OR2V - GR horizontal ventilated refrigeration unit, featuring a finned-pack ventilated condenser, is ideal for the creation of refrigerator compartments up to 300 litres and freezer compartments up to 100 litres.

The unit is equipped with an R134a compressor.

As standard, all refrigeration units are powered at 12–24 Vdc and are supplied pressurised with nitrogen.
On request, it is possible to order the version equipped with quick couplings and additional 100–240 Vac power supply, offering even greater installation flexibility.

Depending on the configuration of the refrigeration system, the AC power supply can be provided via an electronic control unit (12–24 Vdc / 115–230 Vac 50/60Hz) applied directly to the compressor, or through an external automatic-switching power supply.

Standard Version:
• Power supply 12–24 Vdc
• Without quick couplings

Optional Version:
• Power supply 12–24 Vdc / 115–230 Vac 50/60Hz
• With quick couplings

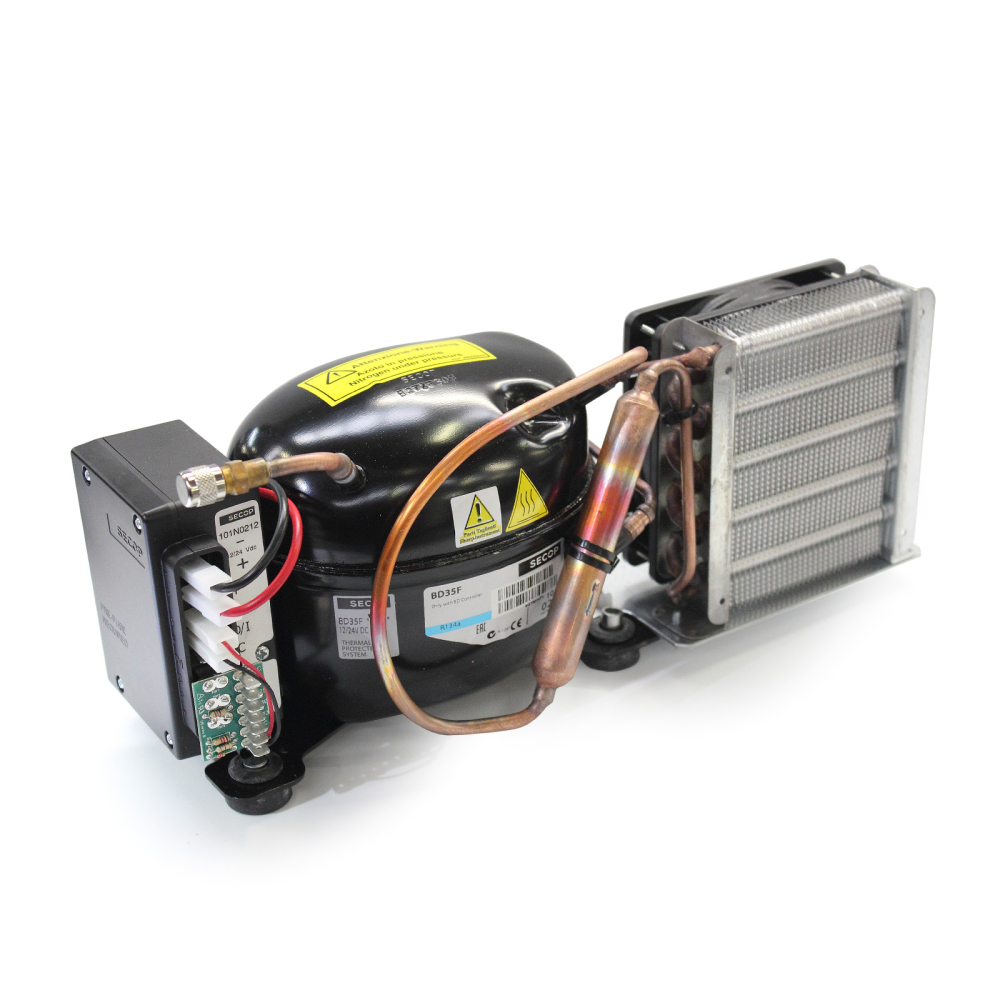

The images displayed on the website refer to the versions equipped with quick couplings and 12/24 Vdc control unit.

Cod. G5600091.000
