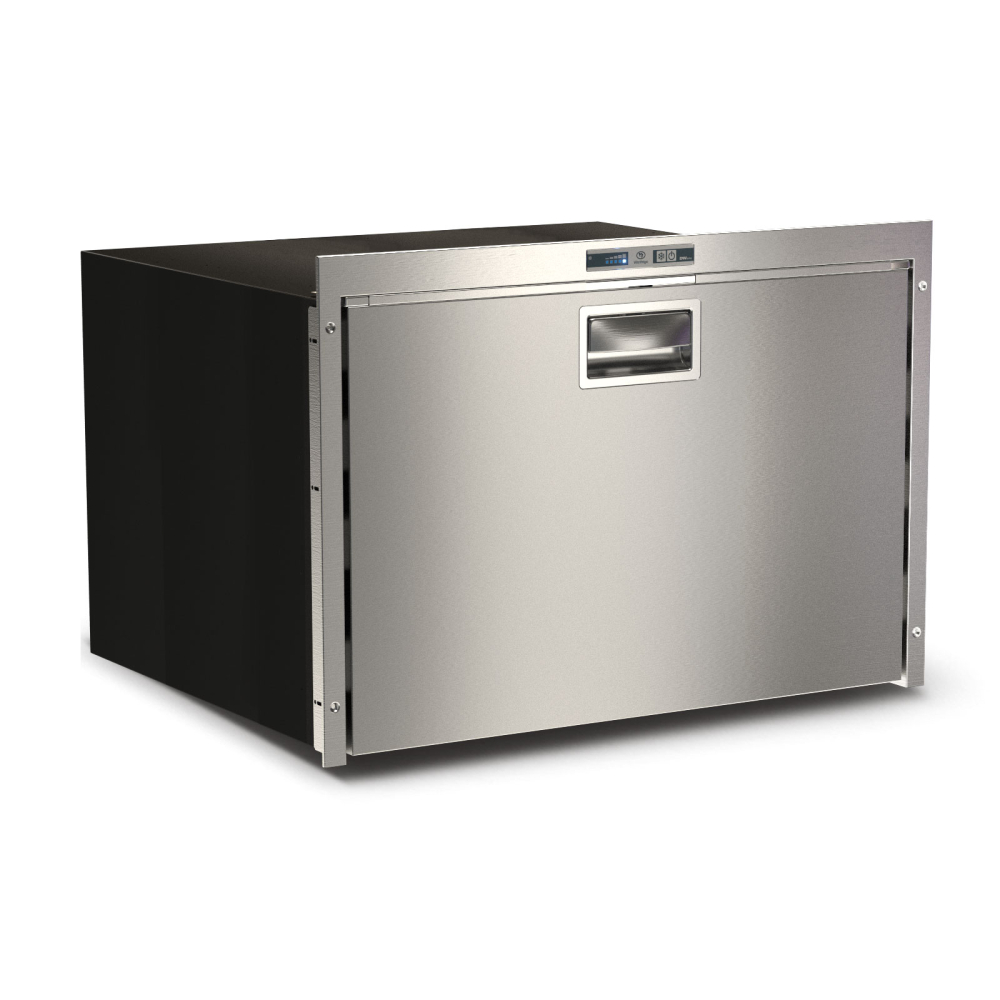

The DW70 OCX2 BTX IM is a drawer freezer with a total capacity of 2.6 CU. Ft. and an ice maker inside, making it perfect for those who want ice readily available at any time of the day.
With its modern and minimalist design, the DW70 OCX2 BTX IM is the perfect choice for individuals seeking to combine elegance and functionality.
| Door Finish | Stainless steel |
|---|---|
| Door color | Stainless Steel |
| Capacity (cu ft) | 2.6 |
| Height (inch) | 18.1250 |
| Length (inch) | 26.2500 |
| Depth (inch) | 24.6250 |
| Weight (lbs) | 83.8 |
| Series | DW OCX2 |
| Reversible door | No |
| Thermostat | ELECTRONIC LED |
| Refrigeration technology | Compressor |
| Cooling unit | External |
| Door opening | Drawer opening |
| Supply | 12/24 VDC - 100/240 VAC |

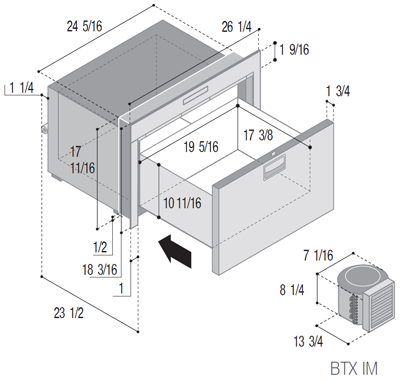

Fridge dimensions
Overall and recessed dimensions with fixing profile
| FLUSH FLANGE | SURFACE FLANGE | ||
| t | 1 - 1 9/16 | t | 1 - 1 9/16 |
| w | 26 1/4 | w | 26 1/4 |
| h | 18 3/16 | h | 18 3/16 |
| a | 23 9/16 | a | 21 7/8 |
| b | 24 7/16 | b | 24 7/16 |
| c | 17 13/16 | c | 17 13/16 |
Dual electronic control 12/24Vdc - 100-240Vac 50/60Hz
Dual position DOOR INSIDE-DOOR OUTSIDE with the same mounting profile
Spacious stainless steel drawer for all your needs
New high-intensity LED lighting system
Available upon request
Design and technology encapsulated in a 'top' closing system
Important function to prevent unpleasant odors due to fridge inactivity
New lacing system for improved air circulation and cooling efficiency
